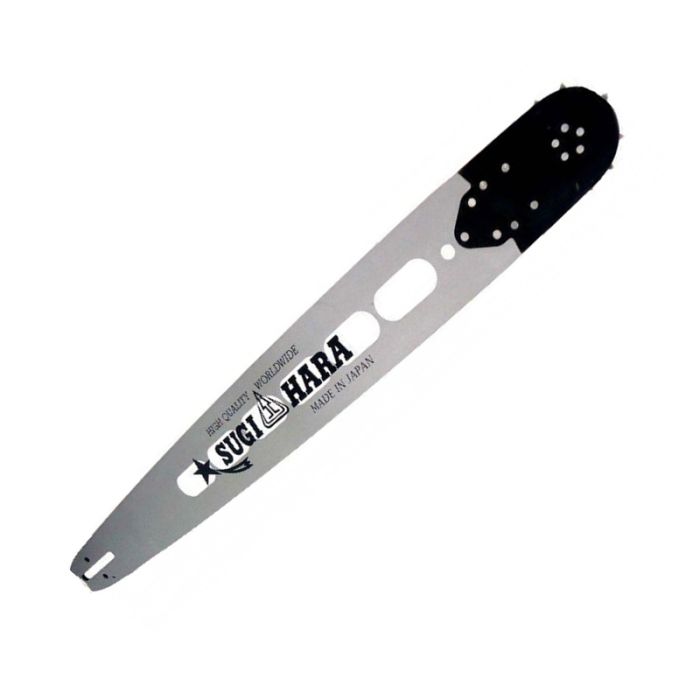

Sugihara VH Light Weight Chainsaw Bar
3/8" Pitch .050" Gauge for Husqvarna and more (K095 Mount)
All Sugihara bars are free of defects in its metal which sets it apart when measured against other bars. Handling a lighter weight bar conserves energy which can be used to create greater production each day.
Pitch: 3/8"
Gauge: .050"
Oregon Bar Mount: K095
Details
- Polished Steel Finish: No hidden blemishes to attract heat and create hot spots on the bar that ultimately shortens the useful life of the bar.
- Superior Rail Hardness: The rail edges are hardened more than the body of the bar which significantly reduces rail wear
- Flexibility: The body of the bar is hardened less than the rails to allow for flexibility when crimped, extending the useful life of the bar
- Lower Weight: Reduces required energy to carry the saw thereby reducing fatigue during the day and encouraging increased production
- Smaller Nose Curve: Significantly reduces burring that is developed in the bar channels. Reducing the amount of maintenance time.
Dolmar: PS-5100, PS- 5100 S (.325" Pitch), PS-5105, PS-5105 H (.325" Pitch), PS-510 (.325" Pitch), PS-460 (.325" Pitch), PS-6100 (.325" Pitch)
Efco: 147, 152, 962, 156 (.325" Pitch)
Fairmount Hydraulic: 38568, 43177, 43178, HCS513, HCS516, HCS520, HPS513, Limblopper
Hitachi: CS40EA
Homelite: 130, 150, 290, 300, 340, 150A0, CS50, d3350b
Husqvarna: 33, 444, 140, 133, 137, 136, 142, 141, 260, 154, 238, 234, 261, 235, 240, 246, 242, 257, 254, 262 XP, 336, 340, 345, 346 XP, 350, 353, 351, 36, 38, 40, 41, 44, 42, 435, 440, 445, 45, 450, 450 Rancher, 49, 455, 455 Rancher, 50, 51, 55, 55 Rancher, 555, 560, 545, 550 XP, 339 XP, 543 XP
JohnDeere: CS46, CS52, CS56, CS62
Jonsered: 45, 49, 50, 51, 52, 370, 410, 420, 425, 450, 451, 490, 510, 521, 525, 535, 590, 941, 2036 (.325 Pitch), 2040 (.325 Pitch), 2051 (.325 Pitch), 2054 (.325 Pitch), 2055 (.325 Pitch), 2063 (.325 Pitch), 2150 (.325 Pitch), 2159 (.325 Pitch), 2163 (.325 Pitch), 2050 (.325 Pitch), 2149 (.325 Pitch), CS 2153 (.325 Pitch), 435, 440 (.325 Pitch), 520SP, CS 2152 (.325 Pitch), 2045 (.325 Pitch), 2145 (.325 Pitch), 2141 (.325 Pitch), 2041 (.325 Pitch), CS 2040 (.325 Pitch), CS 2150 (.325 Pitch), CS 2147 (.325 Pitch), CS 2156 (.325 Pitch), CS 2159 (.325 Pitch), CS 2163 (.325 Pitch), CS 2250 (.325 Pitch), CS 2252 (.325 Pitch), CS 2253 (.325 Pitch), CS 2255 (.325 Pitch), CS 2258 (.325 Pitch), CS 2260 (.325 Pitch), CS 2240 (.325 Pitch), CS 2245 (.325 Pitch)
Makita: DCS430, DCS431, DCS520i, DCS6000i
Maruyama: D176-PL11, D176-PS11
McCulloch: 46, 4700, 4900, 5000, 5500, 2046AV, 2049AV, MS1849, MS1850, MS2046, MS2049, MS2050, PM1845AV, ProMac 40, Silver Eagle 2818, Silver Eagle 3020, TimberBear20
Olympyk (Oleo‑Mac): 941, 945, 950, 951
Partner: 410, 540, P-360, P-400, P-450, P-500, P-5000, PS-510 (.325)
Pioneer: 1074, P-21, P-26, P-28
Poulan/PoulanPRO: 325, 525, 235, 240 (.325 Pitch), S35
RedMax: G390, G450AVS, G455AVS
Sears/Craftsman: 35084, 35201
Shindawa (SDK): 5000
Solo: 613, 614, 631, 632, 638, 639, 641, 644, 645, 647, 650, 651, 651SP (.325" Pitch), 652 (.325" Pitch), 654 (.325" Pitch), 656 (.325" Pitch), 651SP
Stanley: CS05, CS06
Tanaka: ECS-4000, ECS-4000B, ECS-415, ECS-4501, ECV-4501, ECV-5601, TCS 40EA
Troy Bilt: TB4620, TB4920, TB5018, TB5020
More Information
Ask An Expert
Customer Questions
Yes this bar will fit your 550XP.
VH is the mounting pattern associated with many powerheads such as Dolmar, Echo and Johnsered among many other saws.
Great bar!
These Sugihara chainsaw bars are unbelievably light for how strong they are. I was on the fence about spending the money, but so far I’m very impressed.
