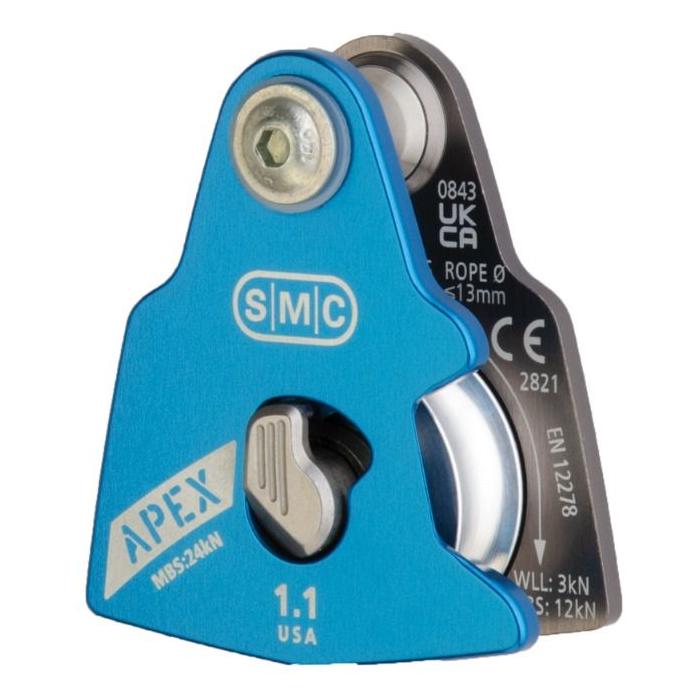

Harken SMC Apex Direct 1.1 Pulley
The SMC Apex Direct 1.1 is a fresh approach to the conventional pulley. It’s specifically designed to be used with soft attachments like prusiks, slings, and soft shackles. Used in this manner, the Apex Direct aligns the rope with the direction of the pull just like a swivel pulley does. It’s compact and over 50% lighter than a comparable swivel pulley/locking carabiner combination.
The Apex Direct is mid-line attachable and features one handed operation that utilizes a low-profile, patented, triple-action lock mechanism. This lock is operated by three distinct actions: pivot the lock button, depress it, then swing open the side plate. Simply closing the side plate re-engages the lock mechanism and solidly secures the rope. The operation is intuitive and ergonomic.
Details
- Efficient sealed bearings
- PMP side plates - designed to be prusik minding
- Aluminum, Stainless Steel
Dimensions: 2.81” x 2.34” x 1.11” (72.12mm x 59.44m x 28.2mm)
Weight: 4.3 oz (122 grams)
Material: Aluminum
Finish: Anodized
MBS: 24kN
WLL: 6kN
Rope Capacity: 1/2 inch (13mm)
Certification: CE / UKCA
Source: Made In USA
More Information
Ask An Expert
Have a Question?
Our tree care experts are here to help. Contact us for personalized advice and recommendations.
Phone: 920.347.4450
Email: info@arbsession.com
Great pulley
I love this thing. you are easily able to open the sheave with one hand, even with gloves on. It is nice and compact. I spliced the arbsession half inch hollow braid onto it.
