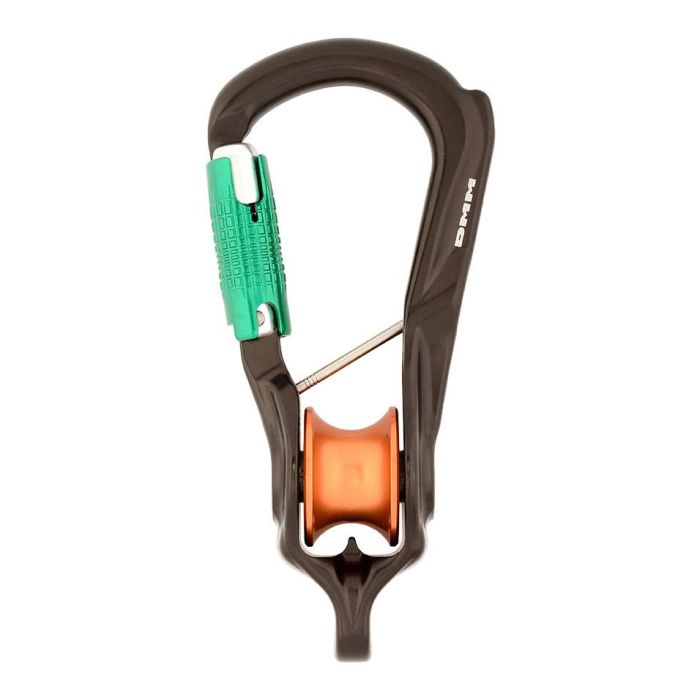

DMM Revolver Rig Locksafe Carabiner
The DMM Revolver Rig is a carabiner with an integrated pulley sheave. It features a high efficiency roller bearing sheave(s), threaded removable captive bar and a full strength textile friendly becket. The uniquely profiled spine and captive bar aid in maintaining correct orientation. The design of the Revolver Rig is such that when using a connector attached to the becket any friction between the connector and rope is minimized.
Details
DMM Revolver Rig Product Info Sheet (PDF)
- Large sheave tread diameter for large bend radius
- High efficiency roller bearings
- Full strength becket accepts most connectors or direct textile connection
- Removable captive bar
- Keylock nose for snag free operation
- Uniquely profiled spine to aid correct orientation
WLL: 5kN
Dimensions: 76mm x 160mm
Weight: 203g Max.
Rope Diameter for Single: 7mm - 13mm
Rope Diameter for Twin: 5mm - 8mm
Conformance: EN12278:2007, EN362:2004
