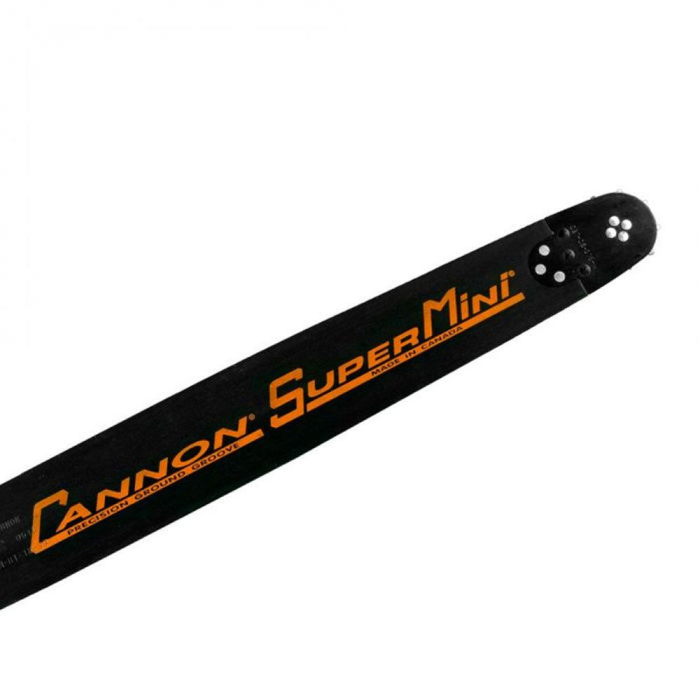

Cannon SuperMini Sprocket Nose S5 Chainsaw Bar

For bucking, limbing, building, carving, or trimming, Cannon SuperMini Bars will help you get the job done. These handcrafted professional bars enable the user to perform a wide range of tasks. SuperMini Bars are not recommended for making bore cuts.

All Cannon SuperMini bars are skillfully hand made and put through rigorous quality assurance checks prior to packaging.

These bars are constructed with custom alloy steel that is cold rolled, heat treated, annealed, stress relieved and surface ground.
This provides the best possible characteristics of wear resistance, strength, durability, straightness and elasticity.

Precision squared and flame hardened rails allow for chain to run straight and true, enhancing the speed and smoothness of cut.

• Designed for use with narrow kerf chain on chainsaws under 60 CC
• Narrow profile for high maneuverability. 1.75″ tip diameter (2.5″at widest point of bar)
• Available in .325″ pitch and 3/8″ low profile.
• Motor mounts available for most makes and models of chainsaws
• Precision squared and flame hardened rails for a long lasting bar
• Available in .050″ gauge
• Precision ground groove to 0.003″ for smooth, straight cutting

S5 Mount fits chainsaws with the following mounts:

Olympyk:  240, 241, 244, 935

Stihl:  010, 012, 017, 020, 023, 021, MSE 180 Electric, 025, MSE 140 Electric, MS 181, MS 192 T, 019 T, 018, 009, 015, MS 250, MS 241, MS 211, MS 171, 020 T, MSE 160 Electric, MSE 200 Electric, HT 70 Pole Pruner, MS 231, 011, E 10 Electric, HT 100 Pole Pruner, HT 130 Pole Pruner, HT 73 Pole Pruner, HT 56 Pole Pruner, MS 150 TC, MS 200, MS 201, E 14 Electric, E 140 Electric, E 160 Electric, E 180 Electric, HT 101 Pole Pruner, HT 131 Pole Pruner, HT 250 Pole Pruner, HT 75 Pole Pruner, HTE 60 Pole Pruner, MS 150, MS 170, MS 180, MS 190 T, MS 191 T, MS 200 T, MS 201 T, MS 210, MSA 200 Cordless, MS 230, MSA 160 Cordless, MS 251
